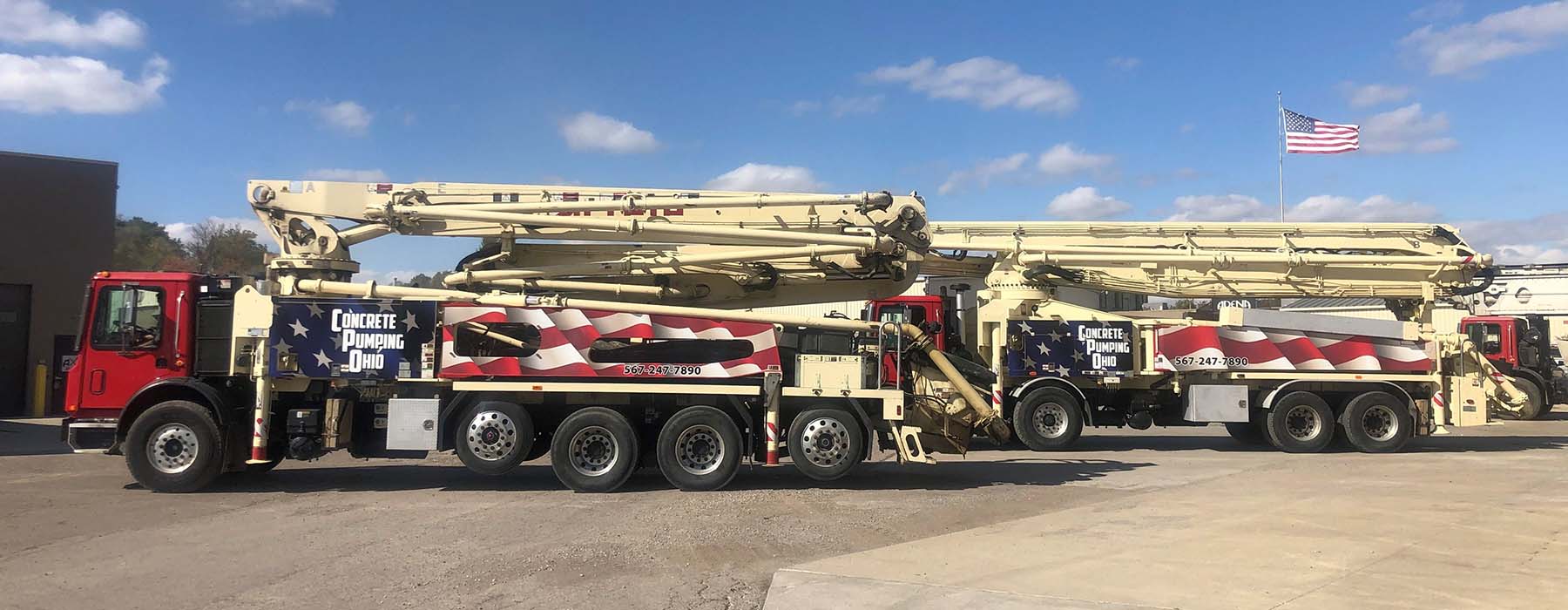

Truck-Mounted Concrete Boom Pump
38Z-5-Meter Truck-Mounted Specifications
Dimensions & Weight |
||
|---|---|---|
| Length | 35′ 6″ | 10.82m |
| Width | 8′ 2″ | 2.50m |
| Height | 12′ 9″ | 3.88m |
| Wheelbase | 223″ | 5,664mm |
| Front axle weight | 18,620 lbs | 8,446kg |
| Rear axle weight | 35,980 lbs | 16,320kg |
| Approx. total weight | 54,980 lbs | 24,766kg |
Based on Model MACK MRU 613 with .16H pump cell.
Weights are approximate and include pump, boom, truck, driver and full fuel tank.
Varies with options selected.
Dimensions will vary with different truck makes, models and specifications.
Boom Specifications • Z-Fold Design
Height & Reach |
||
|---|---|---|
| Vertical reach | 123′ 0″ | 37.50m |
| Horizontal reach | 107′ 7″ | 32.80m |
| Reach from front of truck* | 99′ 5″ | 30.30m |
| Reach depth | 83′ 0″ | 25.30m |
| Unfolding height | 24′ 3″ | 7.40m |
4-Section Boom |
||
|---|---|---|
| 1st section articulation | 90° | |
| 2nd section articulation | 180° | |
| 3rd section articulation | 180° | |
| 4th section articulation | 245° | |
| 5th section articulation | 230° | |
| 1st section length | 28′ 7″ | 8.70m |
| 2nd section length | 20′ 4″ | 6.20m |
| 3rd section length | 18′ 5″ | 5.60m |
| 4th section length | 21′ 4″ | 6.50m |
| 5th section length | 21′ 4″ | 6.50m |
General Specs |
||
|---|---|---|
| Pipeline size (ID) metric ends | 5″ | 125mm |
| Rotation | 365° | |
| End hose — length** | 10′ 0″ | 3.00m |
| End hose — diameter | 5″ | 125mm |
| Outrigger spread L-R — front hydraulically extend out & down |
20′ 8″ | 6.30m |
| Outrigger spread L-R — rear hydraulically swing out & extend down |
23′ 11″ | 7.30m |
| Pump Specifications | 38Z-5.16H | 38Z-5.16H LS |
|---|---|---|
| Output — rod side | 210 yd3/hr (160m3/hr) | – |
| Output — piston side | 146 yd3/hr (112m3/hr) | 210 yd3/hr (160m3/hr) |
| Pressure — rod side | 1,233 psi (85 bar) | – |
| Pressure — piston side | 1,885 psi (130 bar) • | 1,233 psi (85 bar) • |
| Material cylinder diameter | 9″ (230mm) | 10″ (250mm) |
| Stroke length | 83″ (2,100mm) | 83″ (2,100mm) |
| Max strokes per minute — rod side | 31 | – |
| Max strokes per minute — piston side | 21 | 26 |
| Volume control | 0–Full | 0–Full |
| Vibrator | Standard | Standard |
| Hard-chromed material cylinder | Standard | Standard |
| Hydraulic system | Free Flow | Free Flow |
| Hydraulic system pressure | 5,075 psi (350 bar) | 5,075 psi (350 bar) |
| Differential cylinder diameter | 5.5″ (140mm) | 5.5″ (140mm) |
| Rod diameter | 3.1″ (80mm) | 3.1″ (80mm) |
| Maximum size aggregate | 2.5″ (63mm) | 2.5″ (63mm) |
| Water tank — pedestal | 185 gal (700L) | 185 gal (700L) |
Maximum theoretical values listed
* Applies to units mounted on PMA stock truck — MACK MRU 613
• Standard delivery line system rated at max line pressure of 1,233 psi (85 bar)
