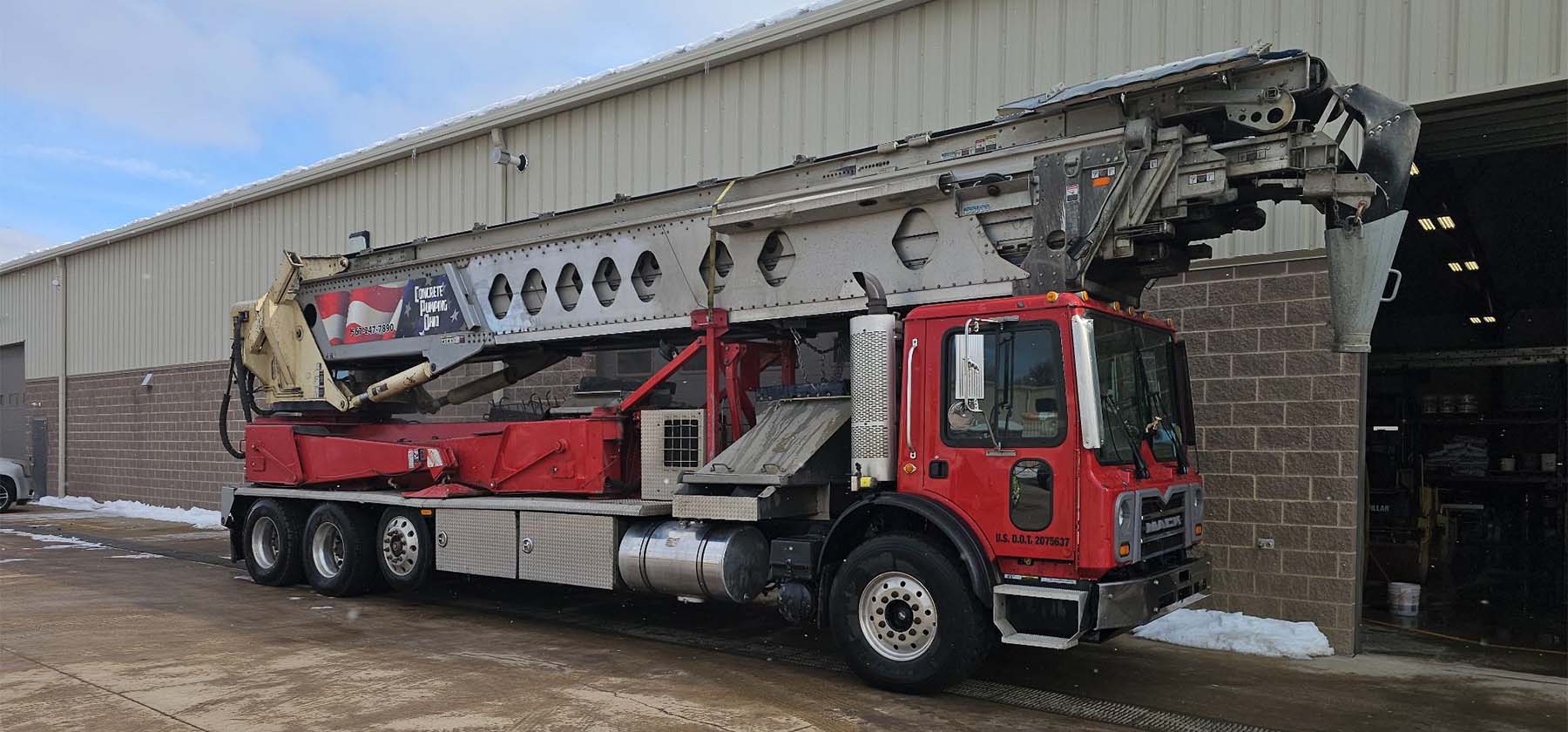

Telescopic Belt Conveyor
Placement Versatility
A Telebelt offers a quick way to easily maneuver around obstacles and place material exactly where you want it without the extra cost of all-wheel drive mixer trucks, skid-steer loaders or other equipment.
A Cleaner, More Efficient Site
Telebelts do not require priming, and all material can be run off the belts eliminating waste. A highly efficient spring-tensioned carbide scraper system helps to keep job sites clean.
Hopper Options Add Convenience
An integral part of the feed conveyor, the folding hopper makes setup a breeze. Side panels fold into the feed conveyor and end panels connect with linchpins. The belt can then be easily fed with ready mix trucks from three sides. Additional hopper options are also available.
Conveyors |
||
|---|---|---|
| Conveyor horizontal reach — Maximum at 0° | 106′ 1″ | 32.34m |
| Conveyor horizontal reach — Maximum at 30° | 91′ 6″ | 27.91m |
| Conveyor belt width | 18″ | 457mm |
| Feed conveyor length | 38′ | 11.60m |
| Feed conveyor belt width | 18″ | 457mm |
| Trunk/end hose length | 15′ | 4.57m |
| Discharge height from grade — Maximum at 30° | 60′ 2″ | 18.36m |
| Discharge height from grade — Maximum at -15° | -20′ | -6.11m |
| Calculated rated capacity at 0° | 6 yd3/min | 4.60m3/min |
| Calculated rated capacity at 0° main & feed conveyors |
360 yd3/hr | 275m3/hr |
| Calculated rated capacity up to 20° | 3.80 yd3/min | 2.90m3/min |
| Calculated rated capacity up to 20° main & feed conveyors |
230 yd3/hr | 175m3/hr |
| Observed capacity | 4.58 yd3/min | 3.50m3/min |
| Observed capacity main & feed conveyors |
275 yd3/hr | 210m3/hr |
Outriggers |
||
|---|---|---|
| Net reach beyond outriggers — at 0° | 100′ 6″ | 30.65m |
| Net reach beyond outriggers — at 30° | 86′ | 26.23m |
| Outrigger spread L-R — front swing out hydraulic up/down |
23′ 1″ | 7.05m |
| Outrigger spread L-R — rear swing out hydraulic up/down |
26′ 9″ | 8.17m |
General Specifications |
||
|---|---|---|
| Water tank capacity | 200 gal | 757L |
| Hydraulic oil tank capacity with cooler | 150 gal | 568L |
Truck Specifications*•† |
||
|---|---|---|
| Weight | 20,525 lbs | 9,310kg |
| Engine horsepower | 405 hp | 302kW |
| Wheelbase | 299″ | 7,595mm |
| Cab height | 104″ | 2,642mm |
| Steering radius (outside) | 45′ 6″ | 13.87m |
| Steering angle | 30d° | |
| Fuel tank capacity | 80 gal | 303L |
| Transmission | Mack T310 10-Speed |
Transport Axle Weights*•† |
||
|---|---|---|
| Steering | 19,365 lbs | 8,784kg |
| Pusher | 11,000 lbs | 4,989kg |
| Tandem | 31,438 lbs | 14,260kg |
| Total | 61,803 lbs | 28,034kg |
Maximum theoretical values listed
* Truck dimensions will vary with different truck makes, models and specifications.
• Weights are approximate and include driver, conveyor truck, full hydraulic oil, full fuel and full water.
† All specifications apply to units mounted on Mack MRU 613.
