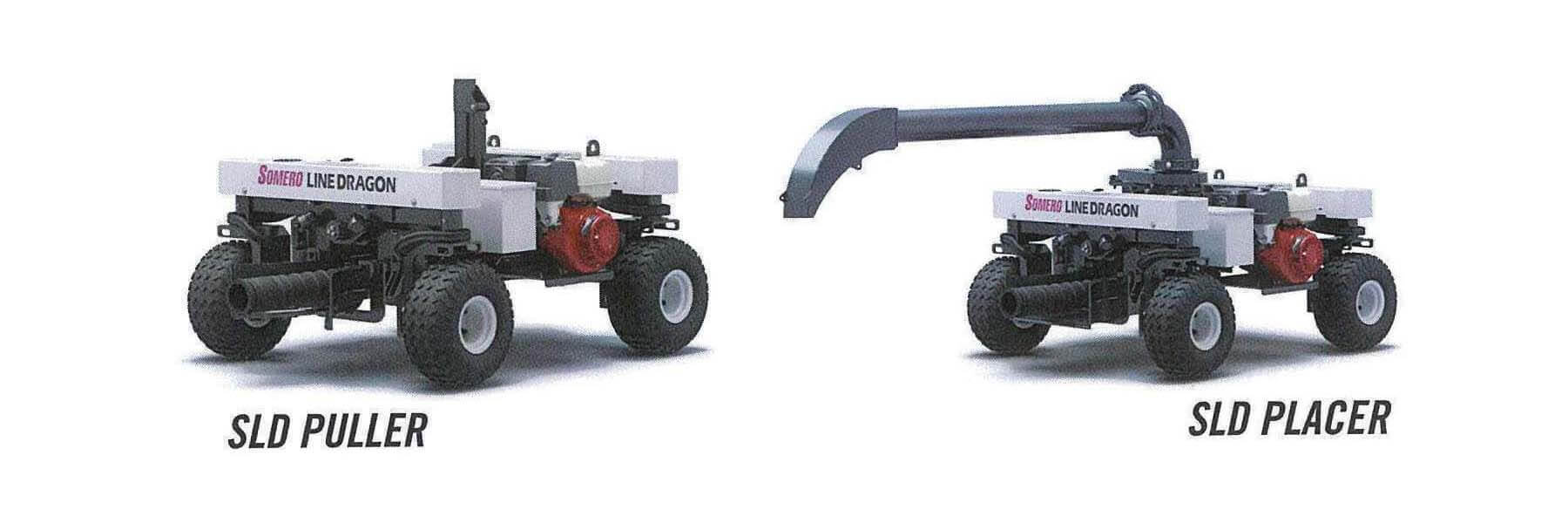

Somero Line Dragon — Line Pulling and Placing System
A remote-controlled hose handling system with load sensing variable displacement hydraulics that move concrete lines with ease. These machines are sure to enhance productivity, create labor savings, and reduce the risk of injury that comes with moving pump hoses by hand.
| Specifications | Puller | Placer |
|---|---|---|
| Weight | 1,150 lbs / 521.6 kg | 1,335 lbs / 605 kg |
| Width | 51.5″ / 1.3 m | 51.5″ / 1.3 m |
| Height | 47″ / 1.19 m | 49″ / 1.24 m |
| Length | 73″ / 1.8 m | 10′ 10″ / 3.30 m with boom attached |
| Specifications | Puller and Placer |
|---|---|
| Engine (Standard) | 11.7 HP / 8.7 kW Honda GX390 |
| Ground Clearance | 7″ – 7.25″ / 0.178 – 0.184 m |
| Steering Angle | 180 deg. |
| Tires | Carlisle 18 x 8.5 TireBall High Performance Inflation System |
| Clamp Opening | 8.5″ / 10.22 m |
